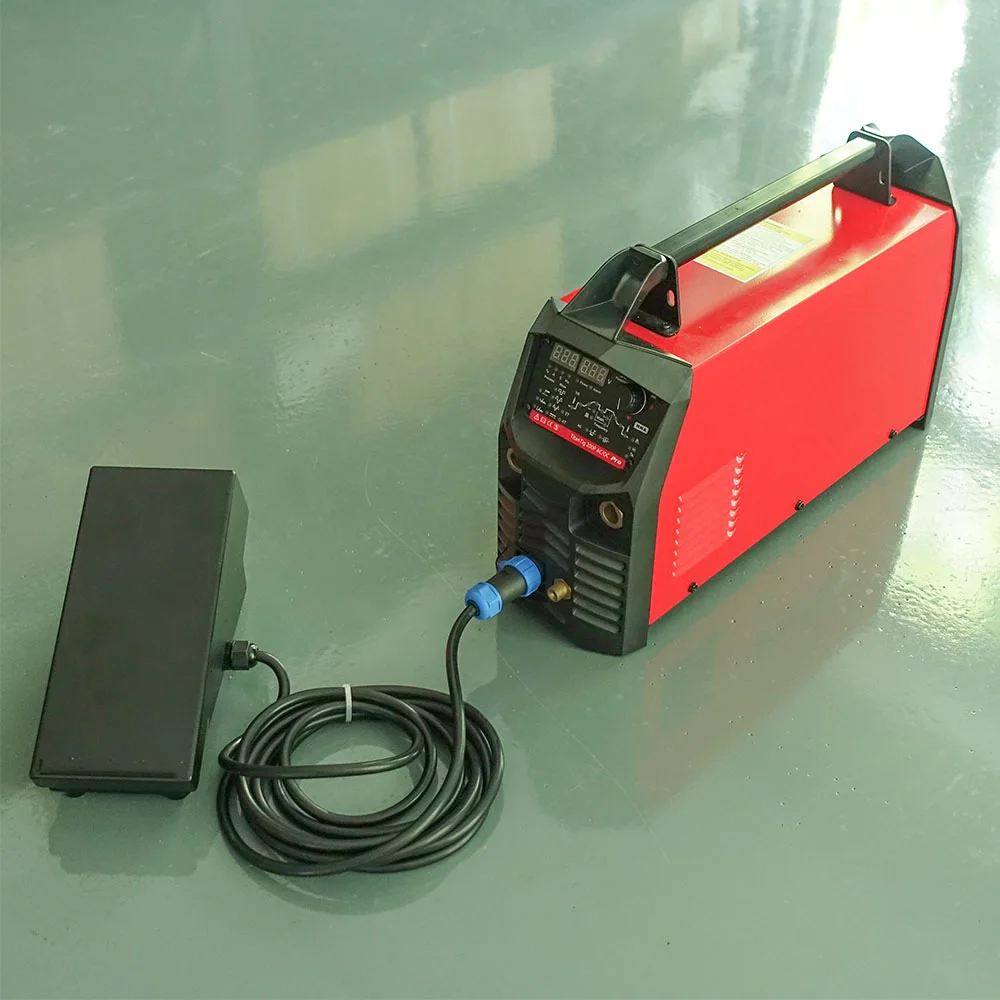

TIG Welding Foot Pedal Remote Current Controller 12pin Air Socket 3.2M Long Cable of TIG Pulse AC DC Inverter Welding Machine
TIG Welding Foot Pedal Remote Current Controller 12pin Air Socket 3.2M Long Cable of TIG Pulse AC DC Inverter Welding Machine
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: TywelMaster
Certification: CE
Origin: Mainland China
Pilot Arc Current: NA
Model Number: 12pin Foot Pedal
Dimensions: 23.5x12x10cm (9.25x4.72x3.93")
Arc Current: Various
Rated Duty Cycle: NA
Usage: Remote Current Controller
Is Smart Device: no
Plug Type: EU plug
Pulse Frequency: NA
Cable Length: 4m (13ft)
Connection: 12pin
Pedal switch control:
The eighth and ninth of the 12pin aero socket is gun switch; The first and second of the 12pin aero socket is short circuit; The third、fourth and fifth of the 12pin aero socket is pedal adjustable resistance (can reference picture).
Cable Length: 4m (13ft).
Connection: 12pin. Attention: If your machine configuration is different, or connector is different, then you need to change it accordingly.
Pedal Material: Metal with black powder coating.
Variable Resistance: 10K.
Weight(net): about 1.8kg.
Dimension: 235x120x100mm (9.25x4.72x3.93”), please reference picture.
Package:
1pcs
