Features:

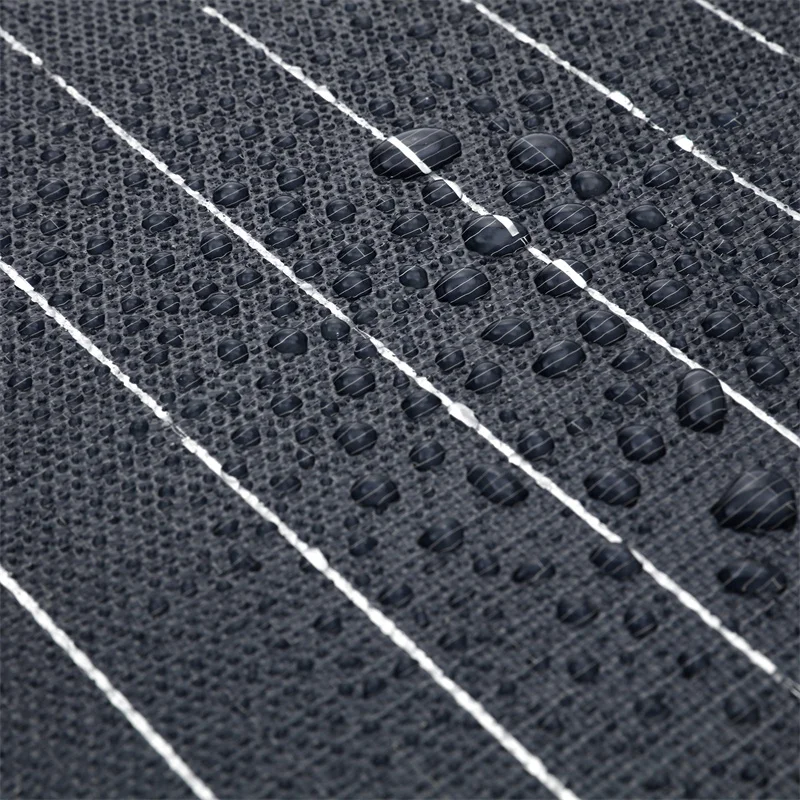

* Made of high quality materials, eco-friendly, waterproof, durable and responsive.

* Portable, foldable, light and easy to carry, it can reduce shipping costs for customers.

* The panel can be placed in the sun to charge the device directly.

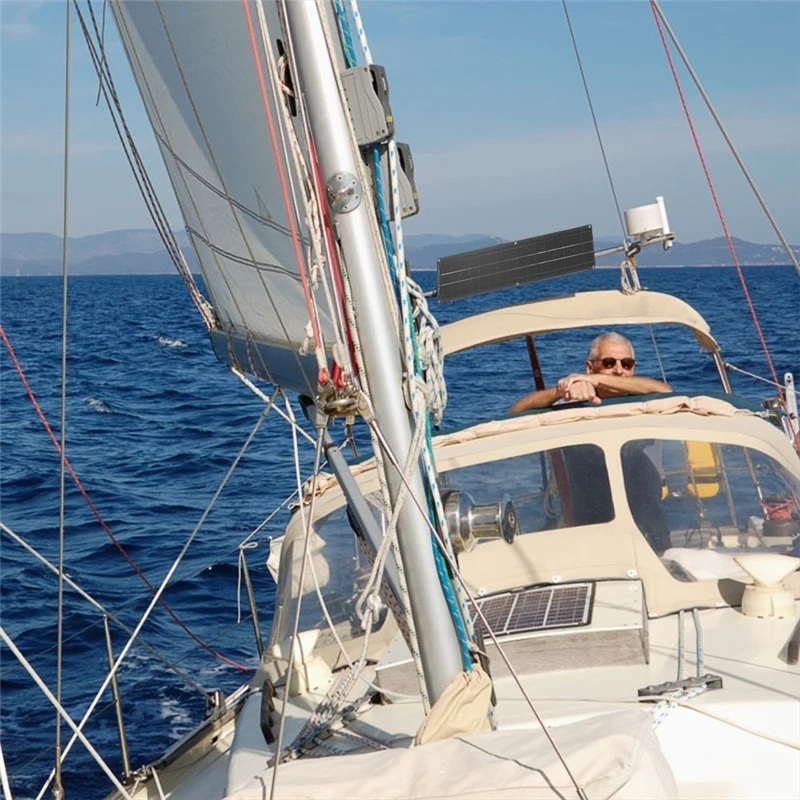

* Perfect for outdoor cycling, climbing, hiking, camping, tourism and emergency.

* Use monocrystalline cells with good conversion rate to generate good power.

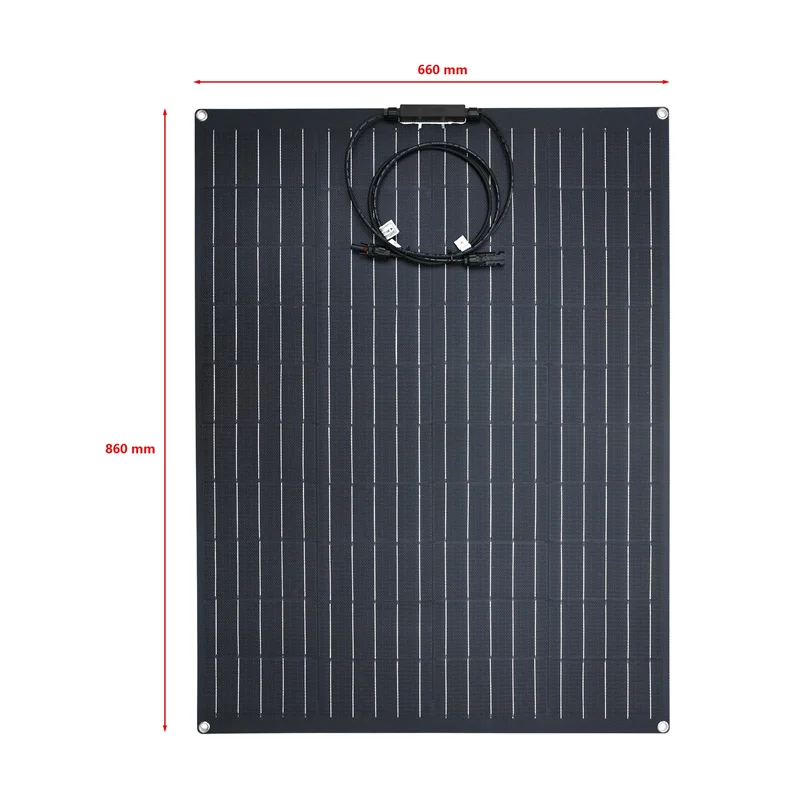

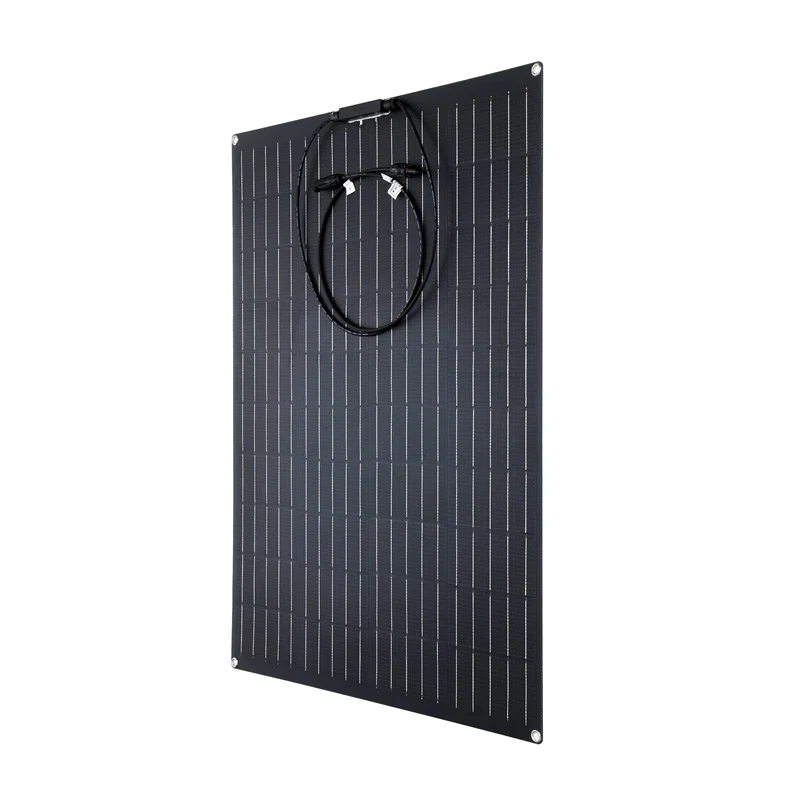

Specification:(860*660mm solar panel)

Name: Solar Charging Panel

Battery type: monocrystalline silicon solar cells

Number of cells: 36pcs

Rated power: 300W

Module efficiency: 20.3%

Power tolerance: ±5

Open circuit voltage: 22-24V

Short circuit current: 6A

Maximum power point operating voltage: 18v

Maximum power point operating current: 5.5A

Packaging material: ETFE

Chemical Type: EVA

Junction Box: MCA

Connector: MC4

Service life: 10 years

Size: 860*660mm

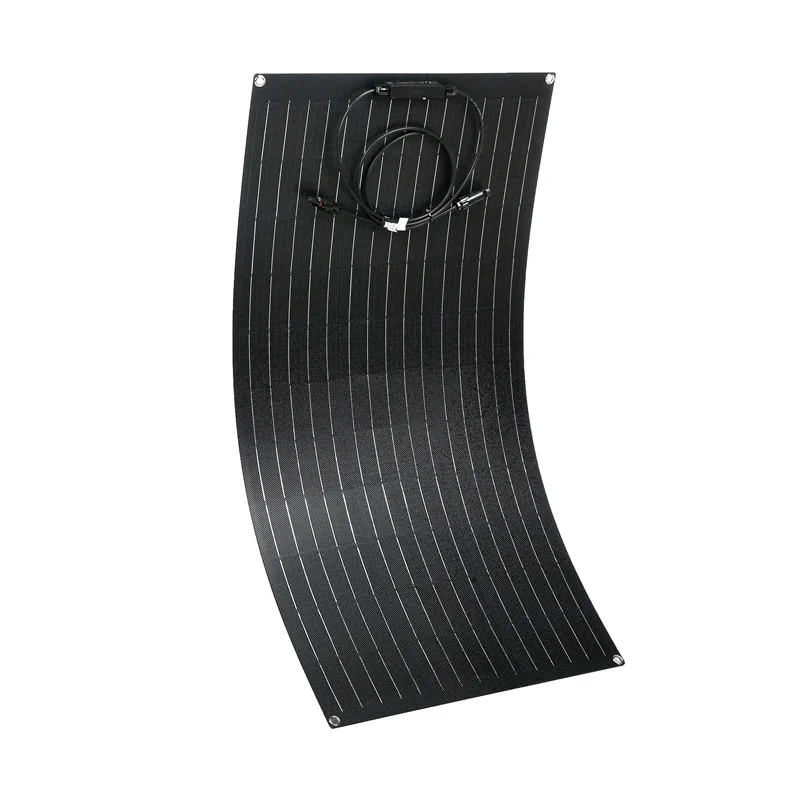

Specification:(950*500mm solar panel)

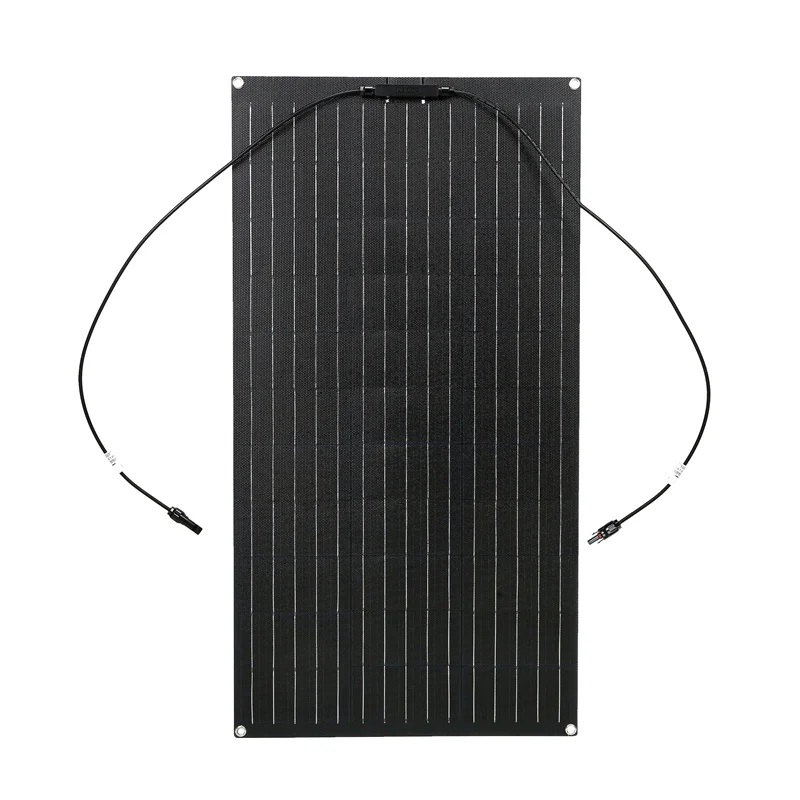

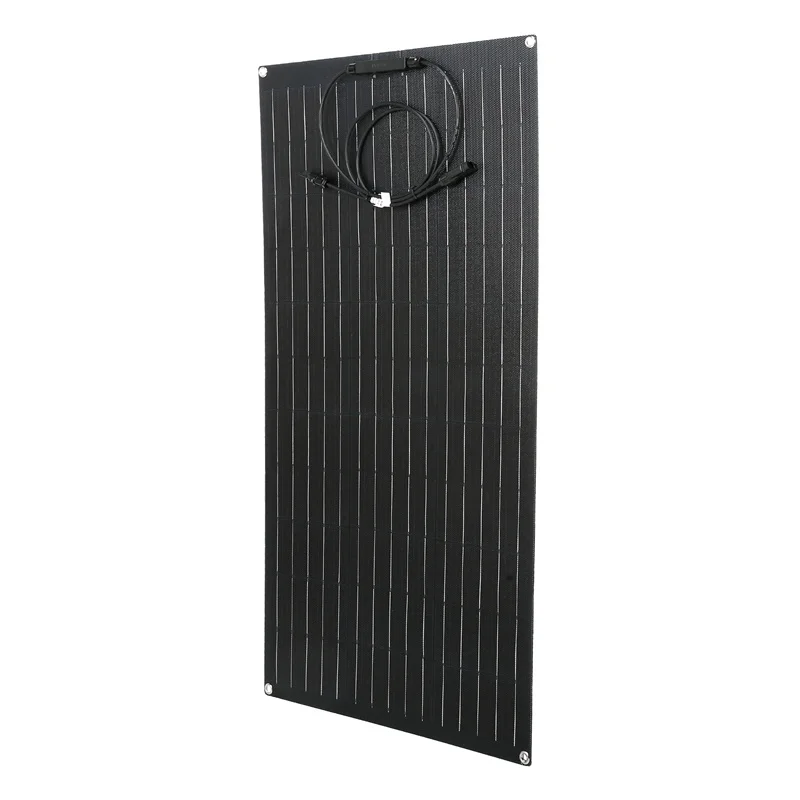

Name: Semi-flexible solar panel

Battery type: monocrystalline silicon solar cells

Rated power: 300W

Size: 950*500mm


Specification: (Controller)

Name: Solar Controller

Material: ABS

Current: 150A

Display: LCD screen

Size: 133*70mm/5.2"*2.7"

Colour: Black


Specifications: (Inverter)

-Name: Pure sine wave power inverter

-Input voltage: DC 12V for car

-Output voltage : AC 220V (210~230V)/AC 110V (110~130V)

-Output frequency: 50Hz

-Peaks Power :6000W/4000W

-Rated power: 6000W=1000W ,4000W=800W(Please make sure that the total rated power of the connected devices is ≤ 800W,1000W)

-Product size: 33X6X10.3cm/21X10.3X6cm

-Maximum Active Surge Rating (less than 1 second) :6000W/4000W

-Maximum AC Current per socket :8.33Ampere

-Output Waveform: True/pure sine wave (<3% THD)

Efficiency: 90≥%

-No Load Current Draw (DC side) <0.6 A

-8 Safety Protection Function:

Reverse polarity protection, Low input voltage protection, High input voltage protection, Over-current protection, Short circuit protection, Over temperature protection, Overload protection, Internal fuses


Features:

* [Pure Sine Wave] Converts 12V DC to AC 220V household wall power with continuous 1300W output (8000W surge capability) with 1 AC receptacles, one LED Voltage display, high current DC terminals and two LED work lights. (Please make sure that the total rated power of the connected devices is ≤ 1300W).

* [Strong and Durable] Plastic housing provides advanced protection from drops and bumps.

* [LED Green&Red Work Lights] When inverter work normal, the two green LED Lights work, but when it is on protection status, the Red Led Lights will light up.

* [LED Voltage Screen display] LED Display shows the battery Input real-time voltage and remind you to charge your battery according to the low voltage.

* [Widely Applications ] Great for gift,charging TV, washing machine, air conditioner, refrigerant, Microwave and big power appliance. These can only operate a few 220V loads without interference. It can also use with in the car or solar system.

* [Car Becomes RV] With our car power inverter, you can use most of home appliances in your car in the open air, such a watching TV, playing games, give you the experience like being in an RV.

* [Silent Intelligent Cooling Fan] Equipped with silent cooling fan, it will automatically runs at different speed according to power load (watt) load and temperature for dissipating heat and reducing working noise.   There is a temperature sensor built in the inverter. When it is over 45℃, the fans will work automatically. When the temperature is over 75 ℃-80 ℃, the inverter will be in protection mode till it cool down.


NOTE:(Pure Sine Wave Inverter suitable for sensitive load appliances, such as refrigerators, air conditioners, coffee machines, bread machines, induction cookers, etc.)



Battery Usage Time Calculation:

1)The working time of inverter, it is depend on the battery power and load power.

2)Formula: Working time (hours)= Battery Capacity X Battery Voltage X 0.8X0.9/Load Power

3) For example, the battery of 12V 60A is supplied to a 220V 100W bulb.

The working time is = 12(V) X 60(AH) X 0.8 X 0.9/100(W)=5.18(hours)

( Note: 0.8 is battery discharge coefficient, 0.9 is inverter conversion efficiency)



What Size Power Inverter Do I Need?

The size you choose depends on the watts (or amps) of what you want to run (find the power consumption by referring to the specification plate on the appliance or tool). We recommend you buy a larger model than you think you'll need (at least 10% to 20% more than your largest load).


Note:

1. Please allow 1-3cm (0.4-1.18") difference due to manual measurement and slight color variation for different display setting.

2. Due to the light and screen difference, the item's color may be slightly different from the pictures. Please understand.
