Description:

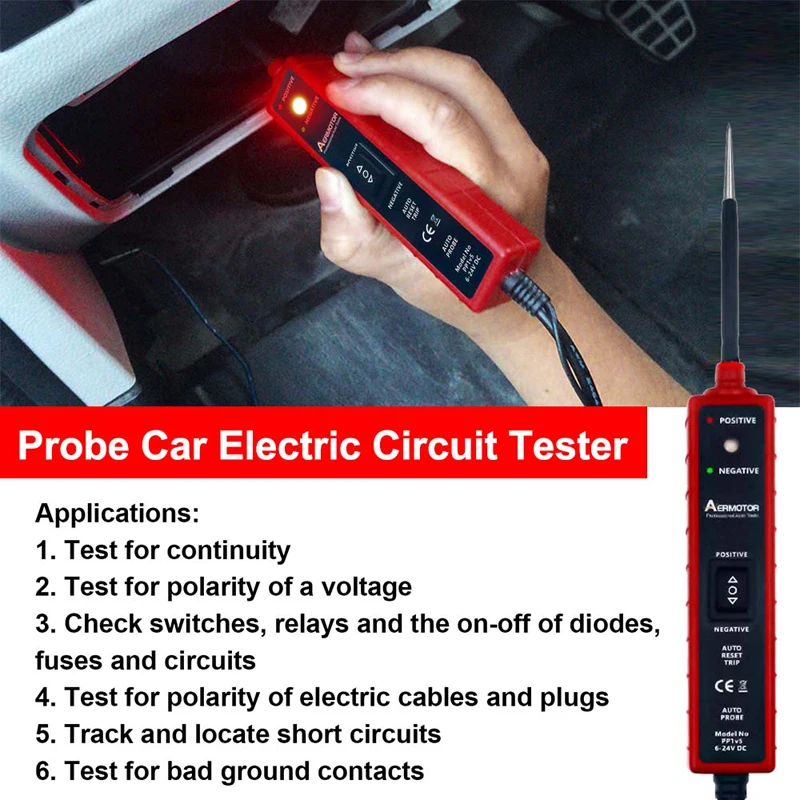

Multi-Funcion Mode: Voltage and Polarity Testing, Activating components off or on the vehicle, Testing lights and connections, Continuity Testing. Checking for Good and Bad Ground Contacts. Following and locating short Circuits.

Circuit Tester Widely Application: It can be used to test continuity, test polarity of a voltage, check lamp, check electric motor, follow and locate short circuits, test for bad ground contacts and measure dc voltage from 2V to 24V etc.

Easy to Use: Powered by the vehicle battery directly. The illumination function enables automotive technician to test the electrical system in the darkness.

Cable Length: Automotive power probe has long test . The cable length is about 4m(13ft) which allows you test any electrical system easily.

Overload Protection: When the current exceeds 8A, the unit will disconnect the current automatically.

Operation Instrcutions:

Unroll the unit's cable

Clamp the red clip to the positive terminal of the vehicle's battery

Clamp the black clip to the negative terminal of the vehicle's battery

Specifications:

Color: red

Operation Voltage: 6-24V DC

Cable Length: 16ft

Overload Protection: 8A (When the current exceeds 8A, this item will disconnect the current automatically.)

Package Size: 26.5 * 9 * 4cm

Package Weight: 320g

Features:

Wide range applications: EM285 circuit tester can be used to test continuity, test polarity of a voltage, check lamp, check electric motor, follow and locate short circuits, test for bad ground contacts etc.

Long test lead: The cable length is about 16ft which allows you test any electrical system easily.

Short-circuit protection: The unit has short-circuit protection and can test for bad ground contacts instantly.

Easy operation: After a simple hook-up of the unit to the vehicle's battery, automotive technician can conduct a positive or negative battery current to the tip by rocking the power switch forward or backward.

Comprehensive 6-24V DC test kit: Do not use on AC voltage.

Package List:

1 * Circuit Tester
