MPPT 3000W Solar PV Hybrid Power Inverter 24VDC TO 220VAC Pure Sine Wave output + 80A MPPT solar battery charger WIFI optional
MPPT 3000W Solar PV Hybrid Power Inverter 24VDC TO 220VAC Pure Sine Wave output + 80A MPPT solar battery charger WIFI optional
SPECIFICATIONS
Brand Name: Snaterm
Type: DC/AC Inverters
Origin: Mainland China
Size: 348*282*105MM
Output Frequency: 50hz/60hz
Output Type: single
is_customized: Yes
Weight: 6.5KG

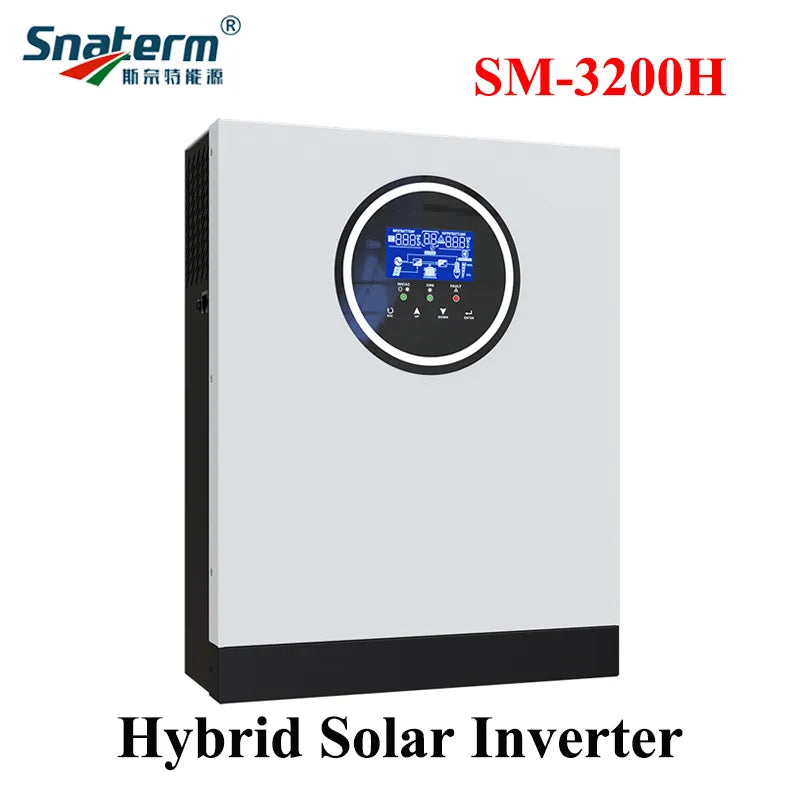

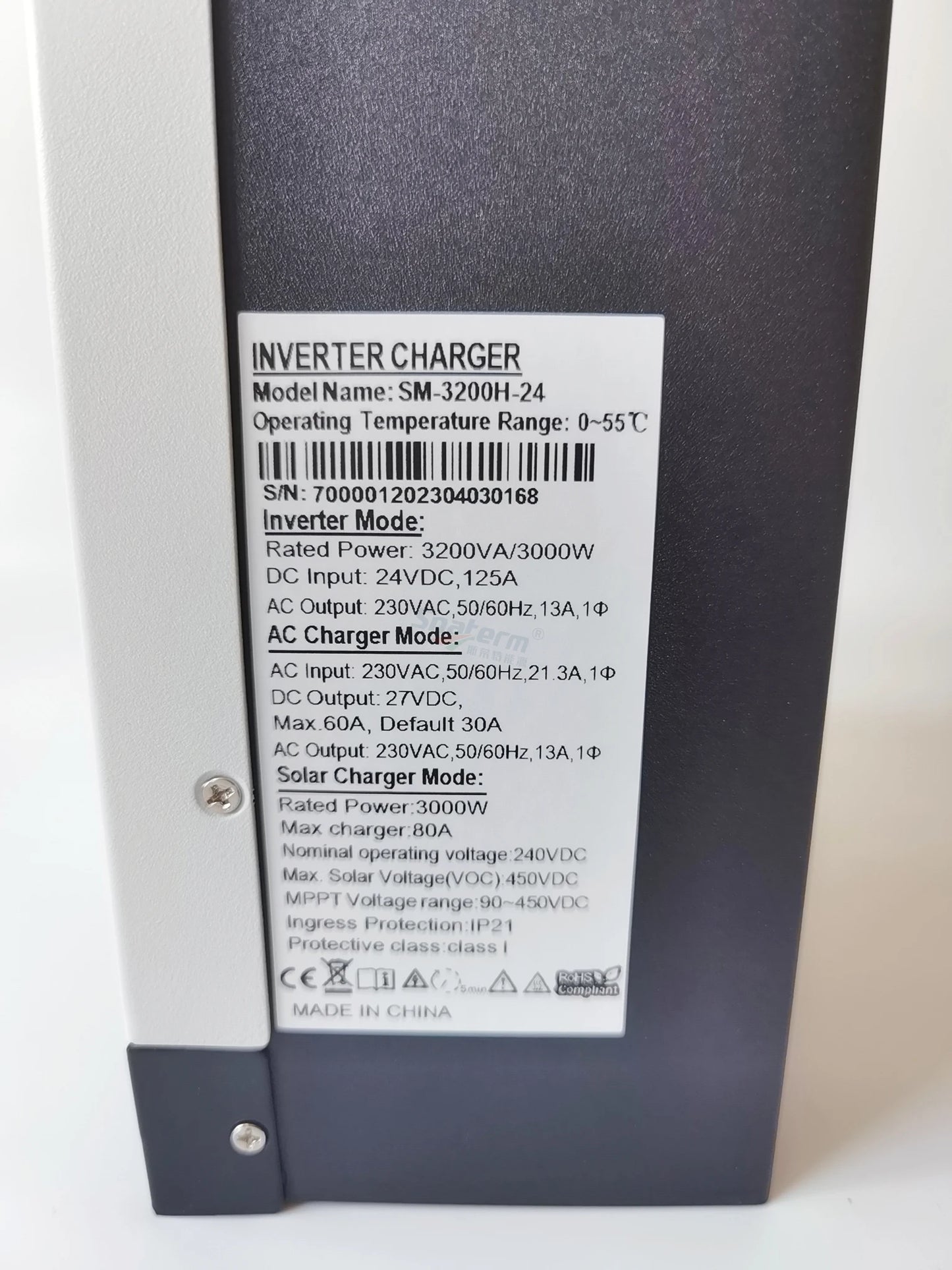

Model Number: SM-3200H
Certification: CE
Wave form:: Pure sine wave
Inverter Rated Power: 3000W
Max PV Array power: 3000W
Max.PV Array Open Circuit Voltage: 450Vdc Max
Output Voltage: 230VAC
Welcome to contact us now to get our latest wholesale price list.
3000W / 3KW Solar Hybrid Inverter 24V AC230V Off-Grid Pure Sine Wave Inversor 80A MPPT Solar Charger,PV 130-430V In Support WIFI

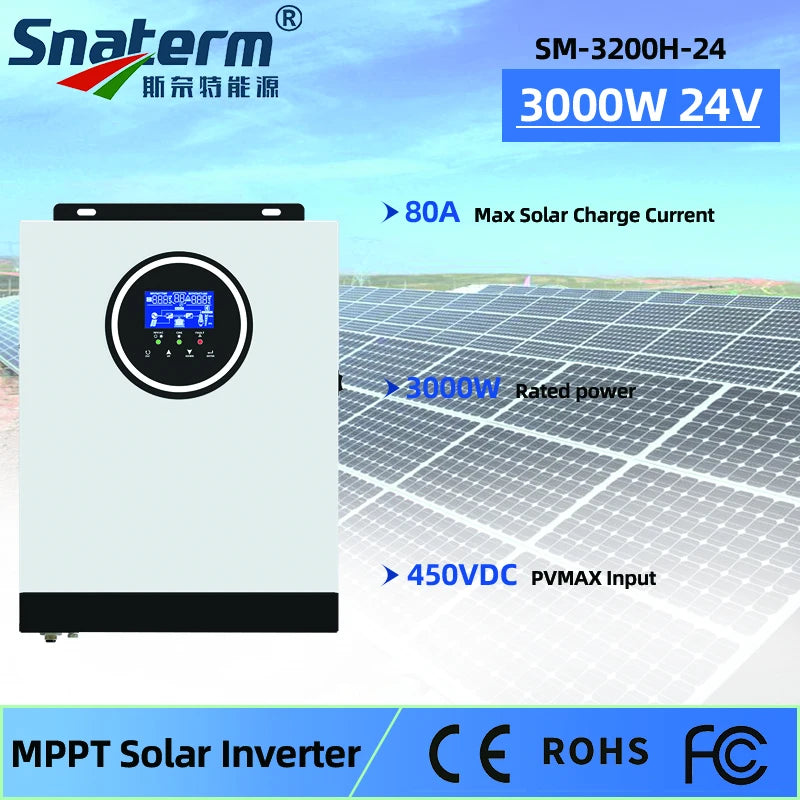

【TECHNICAL SPECIFICATIONS】3.2KVA Hybrid Solar Inverter Max.PV Input Power: 3000W, Voltage range: 130-430Vdc, Max.PV Input VOC: 450V DC, Starting voltage >130V; Recommended PV cable size: 16AWG, Max. charge current: 80A. Nominal Input Frequency: 50/60Hz; Output Power: 3000W, surge Capacity: 6000W.
【MULTIPLE CHARGING MODES】Off Grid Solar Inverter have 4 charging modes are optional, i.e. Only Solar, Mains Frist , Solar Frist and Mains & Solar hybrid charging; and 3 output modes are available, i.e. Solar Frist, Mains Frist and SBU Priority, uninterrupted power supply to meet different application requirements. And compatible to mains voltage or generator power, Auto restart while AC is recovering.

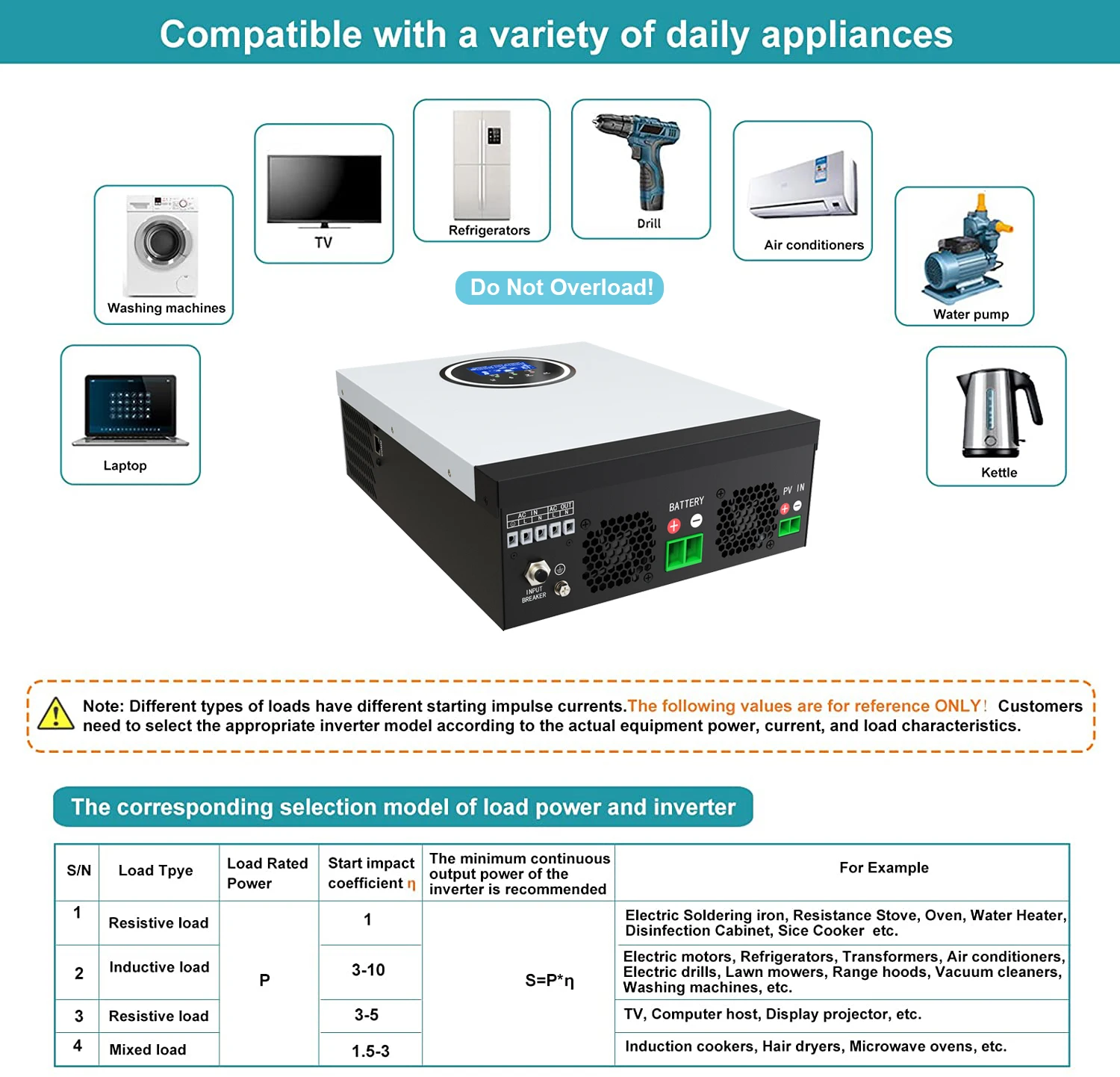

【WIDE RANGE OF USES】MPPT Inverter Charger Pure sine Wave 3000W for RV Camping Boat Home Emergency ect.. Can be accessed to a variety of household and office loads, including Oven, rice cooker, lamps, televisions, fans and other AC loads.(Be careful not to install it near the bedroom, the fan will make a sound when the inverter is running. Avoid affecting your rest (expect 50-70 db))
【W/LCD & LED DISPLAY】LCD display designand 3 LED indicators for dynamic display of system data and operating status, Configurable battery charging current, AC/Solar Charger priority and Load Supply Priority via LCD setting. Support WIFI/ GPRS remote monitoring, users can monitor the status of the PV system from the mobile phone or from the website anytime anywhere.(Not included).

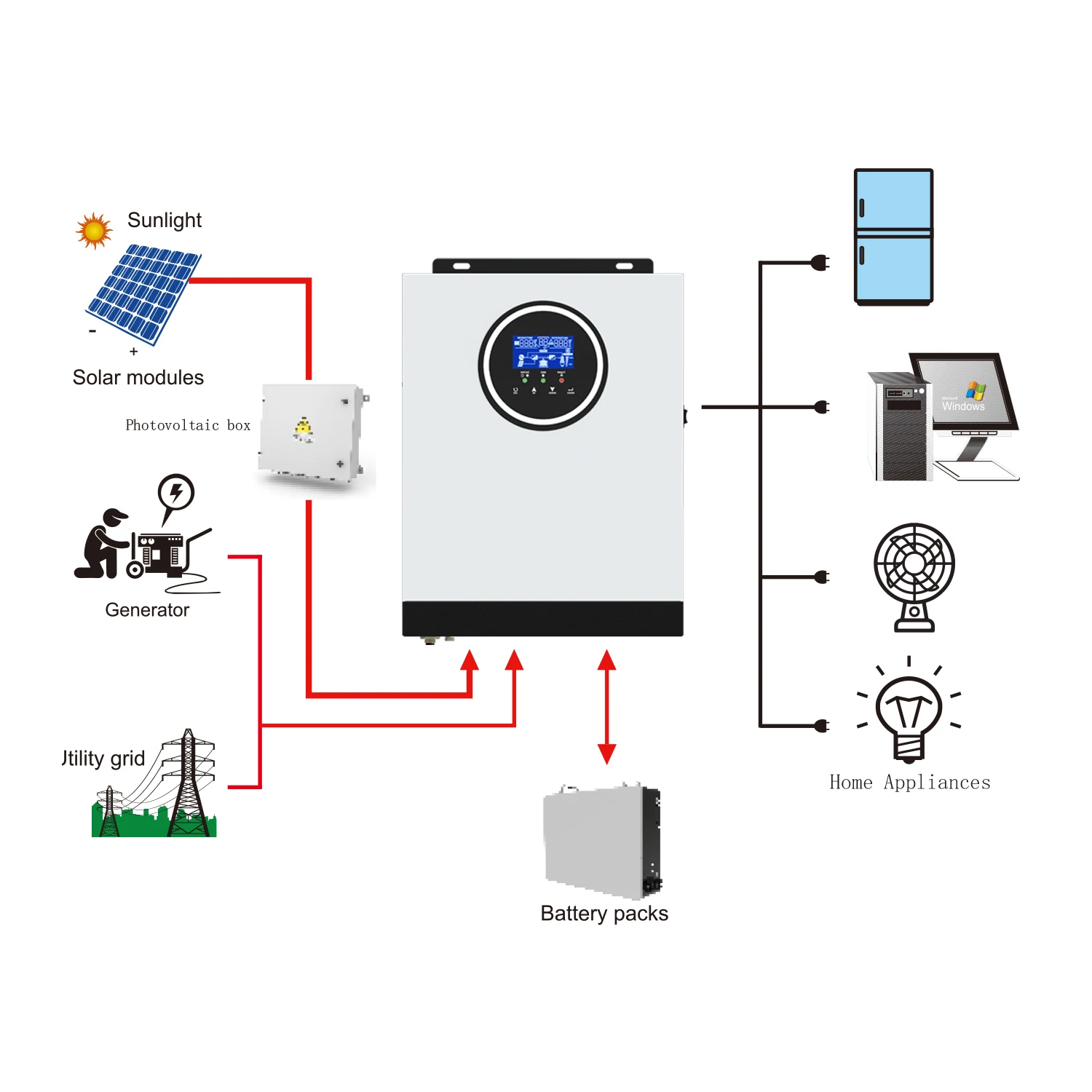

This is a multi-function inverter charger, combining functions of inverter, solar charger, and battery charger to offer uninterruptible power support with portable size.
Bulit in 80amp mppt controller, which integrates solar energy storage &means charging energy storage and AC sine wave output.It can be widely used in DC to AC areas, such as solar AC power system, vehicle system, RV power supply, security monitoring system, emergency lighting system, field power system, household power system, etc.
NOTE 1:

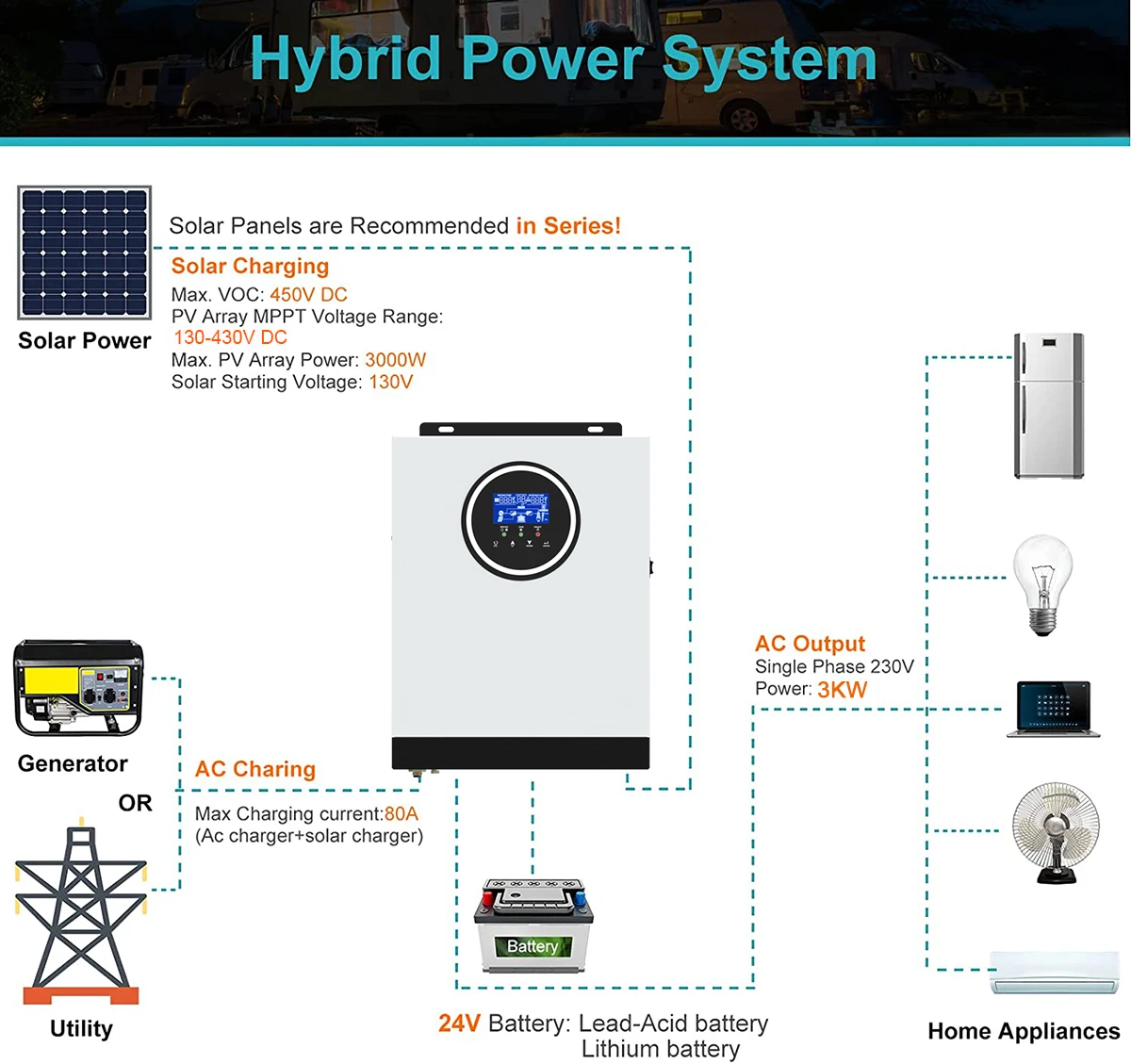

This is a wide voltage Hybrid inverter, The voltage that starts to connect to the solar panel must be above 130V for the Hybrid inverter to work normally. Means you can connect solar panels in series, saving you the cost of buying wires
NOTE 2:
The Battery Capacity OF The Correct Matching System Is Determined According To The Specific Usage Requirements OF The Load And Application Scenarios, Otherwise It will Easily Lead To Insufficient Battery Capacity Or Excessive Waste OF Power Generation.
Features:
Pure sine wave inverter
Configurable input voltage range for home appliances and personal computers via LCD setting
Configurable battery charging current based on applications via LCD setting
Configurable AC/Solar Charger priority via LCD setting(Battery charging mode and load working mode can be set)
Compatible to mains voltage or generator power
Auto restart while AC is recovering
Overload/ Over temperature/ short circuit protection
Smart battery charger design for optimized battery performance
Cold start function
WIFI/GPRS communication(Not included)

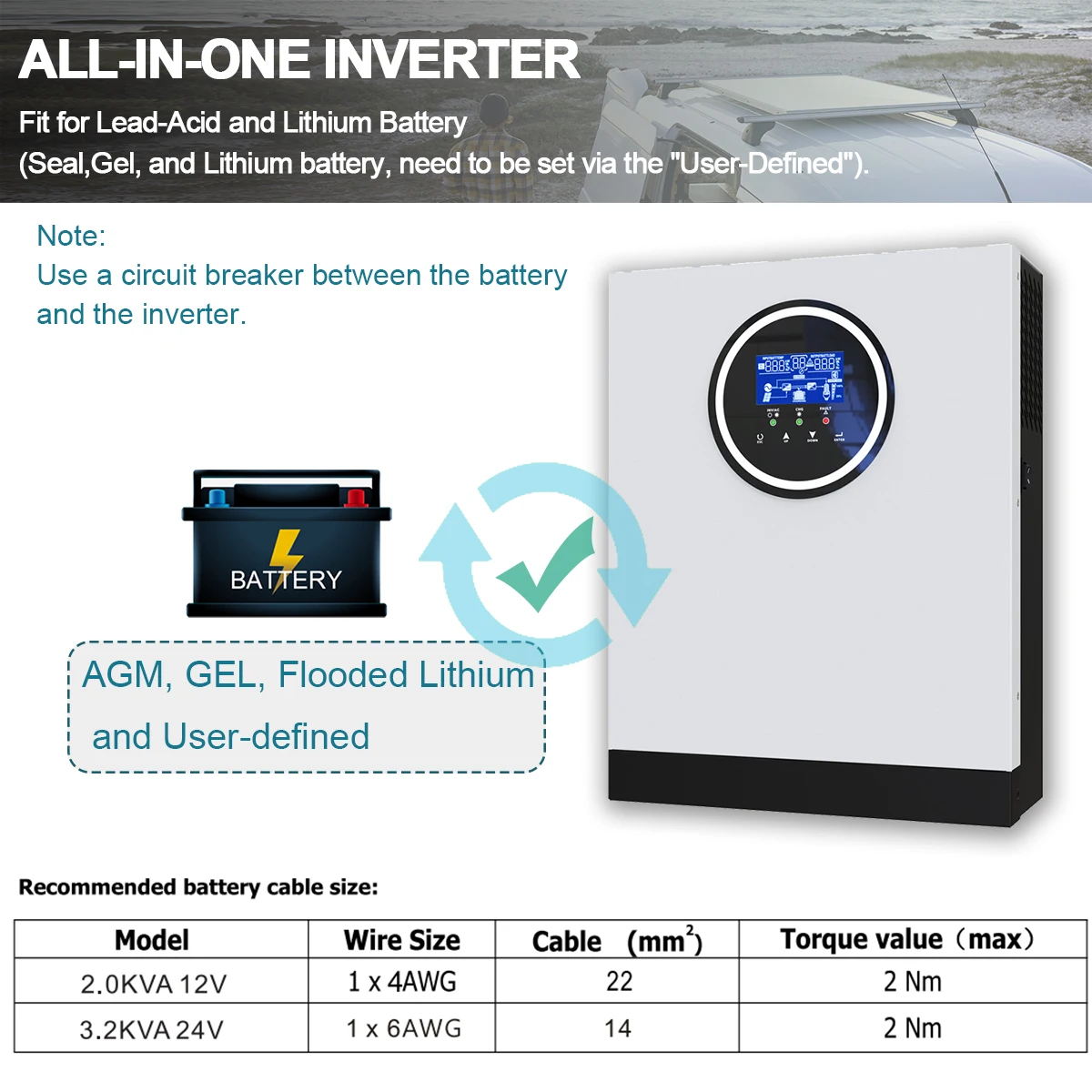

Fit for 24V Lead-Acid (Seal, AGM,Gel, Flooded) and Lithium battery (Need to be set via the “User-Defined”).

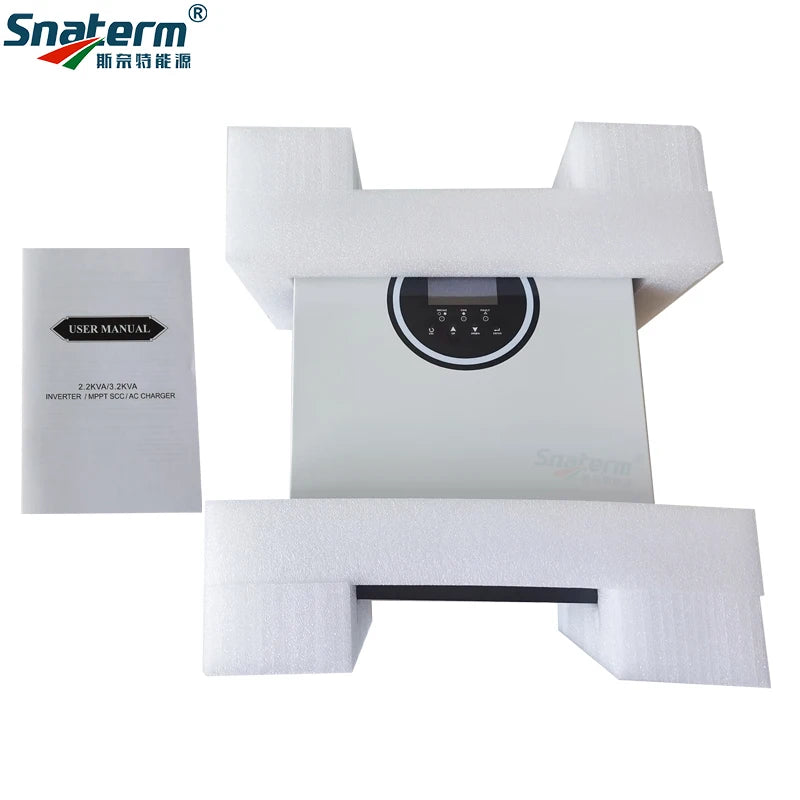

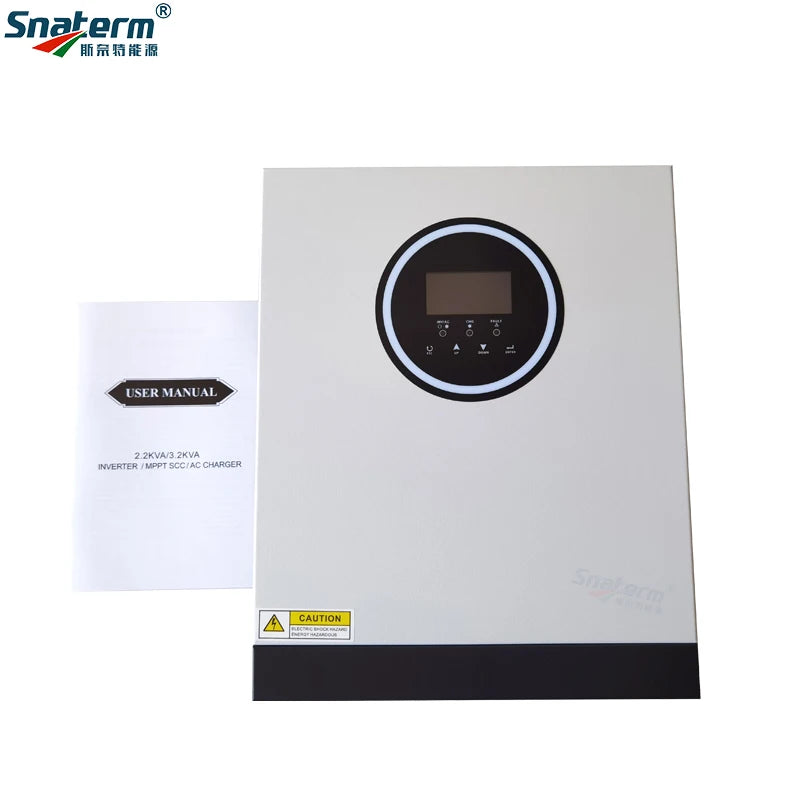

Product Show:
